Fishing Technology (7)

Using a Boot Basket

Description

Boot Baskets are used to trap cuttings which are too large to circulate out of
the hole during drilling, milling or junk fishing operations. The boot basket
should be run as close as possible to the mill, bit or junk basket, etc.

Figure 2-4: Boot Basket


Table 2-3:
Weatherford Type P Boot Basket




Function

The boot basket design traps junk by producing a sudden decrease in
annular velocity when cuttings pass the larger OD of the boot and reach the
smaller OD of the mandrel and top connection of the basket.

Loading up the boot basket



Using a Globe Type Basket

Description

The Globe type junk basket is used to recover any type of small object that
may be in the well bore. The successful operation of the tool requires that a
core be cut from the formation. Any junk will be recovered above the core.

Figure 2-5: Globe and Boot Baskets



Use

The Globe Type Junk Basket is recommended when performing fishing
operations in soft to medium formations (with a drilling rate above 15 feet
per hour).

Types of globe baskets


Two commonly used globe type baskets are:
1- Bowen Itco/Globe basket
2- Weatherford Globe Type Junk Basket
The Bowen Itco/Globe basket consists of a top sub, barrel, and tungsten
carbide milling shoe. Inside are two manganese bronze catchers that are
free to rotate.
Specifications for the Weatherford and Bowen Itco Globe junk baskets are
listed in Table 2-4 and Table 2-5.

Table 2-4:
Weatherford
Globe Type Junk Basket Specifications



Table 2-5: Bowen Itco Globe Type Junk
Basket Specifications



Requirements for the shoe

The crown on the shoe should be about 1/8" to ¼" less than the hole size.
ould ssed with sten carbide to about 1/8" less than the
catche
The ID sh be dre tung
ID of the rs.

Running the globe basket




Fishing Technology (6)

Using Magnets for Fishing

Purpose

Fishing magnets are primarily used to pick up bit cones, but they can pick
up all types of small objects with magnetic properties.

Guidelines for using magnets

Magnets should be run on pipe instead of wire line so that you can circulate
and rotate. Fishing magnets run on wire line are usually made inside the
casing with clear fluid in the hole. There are adapters available to run
magnets on a wire line.
Note: Most, but not all tungsten carbide bit inserts are non-magnetic.

Checking magnet capacity


Check to see if the magnet is charged properly by attaching a 20-lb.
sledgehammer to the face of it. If the magnet will support the weight of the
sledgehammer, it will likely hold any small pieces of junk in the well bore.
The lifting capacity of the magnet is a function of its size, area, and charge.

Verifying size

The OD of the magnet should be ¼" to ½" less than the hole size.


Figure 2-1:
Fishing Magnet with a Cripple Type Guide Attached








Using a Junk Mill

Description


Junk mills mill up and break up large junk into smaller pieces that can be
recovered in a boot basket. Junk mills provide the surest method for
eliminating junk in the hole.

Types of mills



The following are examples of types of mills that are used for eliminating
junk:
1- insert type mill
2- crushed tungsten carbide mill
3- skirted flat bottom or concave type mill
4- blade type mill
5- cone buster mill
6- cement mill.





Figure 2-2: Cone Buster and P Mill



Figure 2-3:  Packer or Cement Mill




Milling guidelines


Some important guidelines for milling with junk mills include:
1- Provide adequate circulation to flush the cuttings and cool the mill.
2- A boot basket must be run directly above the mill to catch the metal
cuttings.
3- Always mill by torque and not by weight. If the mill is producing torque
and making progress, then the weight applied to the mill is sufficient.
Most people run too much weight on mills. A standard rule of thumb is
not to exceed 1,000 pounds per OD inch of the mill.
Note: Mills with stabilizer pads should be used inside the casing.
IF you are milling pipe that causes the drill string to bounce and vibrate,
THEN consider using a Bowen Shock Sub to cut down on vibration.

Calculating milling rates


The milling rates for the carbide mills are specified by the manufacturer in
Surface Feet Per Minute (SFPM). The surface feet per minute must be
converted to revolutions per minute (RPM) because the operator does not
have a way to measure surface feet per minute.
The rpm may be derived from the SFPM by multiplying the mill diameter
by the milling RPM. This result is then multiplied by a constant, 0.262. For
example, a certain mill’s diameter is 4.5" and the milling rate in RPM is
120. You would calculate the SFPM in this way:
4.5 x 120 x 0.262 = 142 SFPM.
Table 2-2 lists some standard milling rates. Other rates may be computed
by converting the milling rates in revolutions per minute to surface feet per
minute.



Collecting the junk

Mills and boot baskets go hand-in-hand. Boot baskets are always run with
mills because they collect the pieces of the junk that the mill grinds up.





Enhanced Oil Recovery ( THERMAL RECOVERY )

THERMAL RECOVERY

Thermal recovery comprises the techniques of :
 -Steam flooding.
 -Cyclic steam stimulation.
     In situ combustion

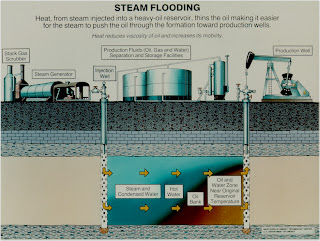

STEAM FLOODING

Recovery by steam flooding is commonly used in


 heavy-oil reservoirs containing oil whose high

viscosity is a limiting factor for achieving commercial
 oil-producing rates

Procedure:

 High-temperature steam is continuously injected into
a reservoir. As the steam loses heat to the formation,
it condenses into hot water, which, coupled with


the continuous supply of steam behind it, provides the

 drive to move the oil to production wells



As the formation heats oil, recovery is increased by:
1.The heated oil becomes less viscous, making it easier to move through the formation toward production wells.

2.Expansion or swelling of the oil aids in releasing it from the reservoir rock.

3.Lighter fractions of the oil tend to vaporize, and as they move ahead into the cooler formation ahead of the steam they condense and form a solvent or miscible bank.

4.Finally, the condensed steam cools as it moves through the reservoir and results in what amounts to an ordinary Water flood ahead of the heated zone.


CYCLIC STEAM STIMULATION
("Huff-and-Puff')
(A well-stimulation method)
This method is sometimes applied to heavy-oil reservoirs to boost recovery during the primary production phase.

Procedure:

A predetermined amount of steam is injected into wells that have been drilled or converted for injection purposes. These wells are then shut in to allow the steam to heat or "soak" the producing formation around the well.
- After a sufficient time has elapsed to allow adequate heating, the injection wells are back in production until the heat is dissipated with the produced fluids.



This cycle of soak-and-produce, or "huff-and-puff," may be repeated until the response becomes marginal because of declining natural reservoir pressure and increased water production.
-At this time a continuous steam flood is usually initiated to continue the heating and thinning of the oil and to replace declining reservoir pressure so that production may continue.
-When the steam flooding is started, some of the original injection wells will be converted for use as production wells, along with the others drilled or designated for that purpose.



Oilfield Steam Generator



Insulated Steam Injection Tubing

The Thermal Tube 3-H tubulars employs a high vacuum as the insulating medium offering the highest thermal performance for oil field steam injection projects


IN SITU COMBUSTION or "Fireflooding
This method is sometimes applied to reservoirs containing oil too viscous or "heavy" to be produced by conventional means.
 Burning some of the oil in situ (in place), creates a combustion zone that moves through the formation toward production wells, providing a steam drive and an intense gas drive for the recovery of oil.

Procedure:



This process is sometimes started by lowering a heater or ignitor into an injection well. Air is then injected down the well, and the heater is operated until ignition is accomplished.
-After heating the surrounding rock, the heater is withdrawn, but air injection is continued to maintain the advancing combustion front.
-Water is sometimes injected simultaneously or alternately with air, creating steam which contributes to better heat utilization and reduced air requirements.

Notice in the accompanying illustration that the lighter steam vapors and combustion gases tend to rise into the upper portion of the producing zone, lessening the effectiveness of this method. Injection of water alternately or simultaneously with air can lessen the detrimental overriding effect.



Fishing Technology (5)

FISHING FOR JUNK

Overview

Any undesirable object that is stuck or accidentally dropped in a well is
referred to as “junk.” Junk may include bit cones, tong dies, broken slips,
reamer parts or debris created by a fishing or milling operation, or any other
small debris that could impede normal drilling operations. Because of the
wide variety of junk that can be in the hole and the likelihood that the
customer may not know what the junk is, you will have to be fairly creative
in planning a junk fishing operation. However, because of the time and
money spent on fishing operations, you will need to devise a method for
fishing the junk that involves the fewest trips and equipment as possible.





Deciding How to Fish Junk

Evaluating the junk

Any debris or junk in the borehole must be thoroughly evaluated before any
successful fishing attempt can be made. Depending on the properties of the
junk, it can either be milled up, recovered, or pushed back (walled-off) into
the formation.
Consider the following questions before proceeding with a fishing job:
  •  What is the size, weight, and condition of the junk?
  •  Is the junk magnetic?
  •  Can the junk be picked up?
  •  What are the dimensions of the bit cone or cones?
The company man would ideally know exactly what the junk in the hole
consists of. When the nature of the junk is unknown, you must be creative
in your approach to fishing the junk.

 Impact of the junk size, weight, and condition

Try to determine the size, weight, and condition of the junk. This
information will help you determine the best method for fishing the junk.
For example, if you have junk that is:
  •  large and/or irregularly shaped, you might try a poor boy basket
  •  smaller, you might try a magnet, core type, or reverse circulating basket.
For very large pieces of junk, you may need to use a junk shot to break it
into smaller pieces before attempting to fish.

Determining if the junk is magnetic

Try to find out what the junk is made of. If it has a high ferrous content, it
is probably magnetic. The easiest method for fishing magnetic junk is using
a magnet.
Determining is the junk can be picked up

If the OD of the junk is significantly smaller than the ID of the hole, than
there is a good chance that it can be picked up. However, if the OD of the
junk is fairly large, it will be harder to get a fishing tool over it. In this case,
you will probably have to mill the junk to break it up and collect the pieces
in a boot basket.

Determining cone dimensions
If you know the junk is a bit cone, the dimensions of the cone must be
known before deciding which tool to run. Find out the size of the bit from
which the cone was lost, and verify the maximum OD of the cone. Select a
tool that has an ID at least 1/8" larger than the OD of the cone.
For example, a 7 7/8" bit cone is 5 15/64" OD. A 7 1/8" OD Bowen Itco
Type Junk Basket has an ID size of 5 28/64". This tool will get over the bit
cone.
Standard rock bit cone dimensions are shown in Table 2-1. Note: This
information can also be found in the Bowen user manuals.


Fishing Technology (4)

Maintaining the Tally Book

Purpose of record keeping

Record keeping is especially helpful when there is a shift change before a
job has been completed. Additionally, records from previous jobs form a
base of information that can be used as a resource when planning fishing
jobs. Record keeping is also important for ensuring that the customer is
billed for the correct equipment and services.

The tally book


The tally book is a short and abbreviated notation of each trip made in the
hole and the tools that were used. The tally book provides important
documentation of the job that is useful for job analysis after the job has been
completed. Additionally, the tally book provides the specifications of the
tools used and services rendered for billing purposes. The tally book should
be kept in such a manner that a relief man could carry on the job with the
information contained in the book.

Rules for keeping the tally book

The tally book must be accurate, legible, and current.
The tally book should include:
  •  a complete description of the fish and all well data
  •  the time, date, number, and brief description of each trip
  •  all parameters, if a milling job is performed. These parameters include:
  1.  depth
  2.  RPM
  3.  strokes per minute (SPM)
  4.  weight on bit (WOB)
  5.  torque
  6.  time
  7.  rate of penetration.
  •  the size and footage along with all auxiliary equipment and daily charges,
if wash pipe is run
  •  a record of any accidents.
Guidelines for the format of the tally book include:
  •  only one trip should be recorded on each page
  •  use one line for each tool description with the OD, ID, length, fishing
neck, and serial number.
The tally book should be kept for future reference.
An example of a tally book














Fishing resume

The resume is a narrative of the fishing operations and tools that were used
each day. Each trip will be noted along with the outcome of the operation.
The resume is very important because it is the documentation for what the
customer is charged. The billing department will not know what to charge
the customer and the customer will not agree to any charges unless they
have been documented in the resume.
Anything that will be billed to the customer, including estimated repairs or
sold grapples, must be recorded on the resume and signed by the company
man

Signing off on the resume


The company man must sign the job resume when it is completed. We
leave ourselves open to legal action if the company man does not
acknowledge the tools and services that were utilized during the job.

Post-Job Procedures

Completing documentation

The job is not complete until all paperwork, including the resume, and tools
use sheet is completed and signed for.

Breaking down tools

Account for all Weatherford tools. Insure they are loaded in the tool baskets
or loaded on the trucks prior to leaving the job site.
If possible, use the rig tongs to break down all tools that come through the
rotary. Most Weatherford stores do not have the facilities to perform this
operation and vendors charge $100.00 per joint to break down the tools.
However, note that rig time on some offshore rigs is prohibitively expensive
for this operation. For example, when fishing on an offshore rig, especially
in the North Sea, it is cheaper for the customer to be charged for breaking
down the tools at the shop facility.

Transporting equipment


Ensure that all protectors are installed on the tools before transporting them
back to the Weatherford store location. This is important to prevent damage
to exposed threads.
Ensure that only Weatherford property is transported back to the
Weatherford store location. It is difficult to arrange a return trip to bring
equipment that is not the property of Weatherford back to the well site.
